Category: Placers
-
PL100 Electric Tamp Mode
Electric Tamp Modules are available as a standard option on all Nautilus Systems, Inc. (NSI) PL100 and PL165 Applicator products. Key benefits of the Electric Tamp include rapid acceleration and deceleration, digital control of the tamp motion profile, elimination of all pneumatic cylinders and associated sensors and flow controls, and reduced compressed air consumption. Compressed…
-
PL100 Pneumatic Tamp Mode
PL100i Applicators with Pneumatic Tamps are the base configuration offered by Nautilus Systems, Inc. (NSI) for fully integrated placement systems. Pneumatic tamps provide excellent performance and are available in multiple actuator configurations, application forces, and stroke lengths. All PL100 units have capacity for 100 x 100mm Adhesive Components and in some cases can accommodate components…
-
PL100 Robot Mode
Nautilus Systems, Inc. (NSI) All-Electric PL100 Robot Mode Feeders are configured specifically for integration with external Robotic or Picker devices to provide a highly accurate and reliable feed and peel system of virtually any shape of die-cut adhesive component. The Robot Mode Feeders include all hardware necessary for operation including the base Feeder, a Payoff…
-
PL100 Series
Description The PL165i provides highly accurate and reliable placement of virtually any shape of die-cut adhesive component. It provides capacity for components up to 100 x 165mm in size. The PL165i is configured specifically for integration into automated assembly solutions. It includes all of the hardware necessary for operation including a pneumatic precision-guided Tamp actuator…
-
PL100-RT180 Applicator
Description This Tamp configuration is available for either standard PL100 or PL100EP (extreme precision) Applicators. It is targeted for components up to 50 x 50mm in size. This module provides the unique function of removing the adhesive component from the liner on one plane and then rotating the adhesive component 180 degrees to reposition the…
-
PL100-RT90 Applicator
Description This Tamp configuration is available for either standard PL100 or PL100EP (extreme precision) Applicators. It is intended for components up to 50 x 50mm in size. This Tamp configuration provides the unique function of removing the adhesive component from the liner on one plane and then rotating the adhesive component 90 degrees to reposition…
-
PL100EPi Applicator
Description The PL100EPi ApplicatorTM provides highly accurate and reliable placement of virtually any shape of die-cut adhesive component. It provides capacity for components up to 100 x 100mm in size. The EP Package provides maximum accuracy with measured results as good as +/- 0.035mm. The EP Package incorporates a ‘closed-loop’ feedback system to monitor travel…
-

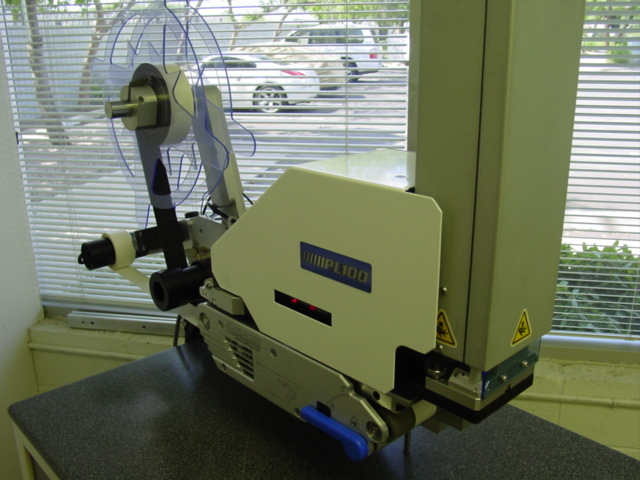

PL100EPi-ET200 Applicator
Description The PL100i-ET200 Applicator provides highly accurate and reliable placement of virtually any shape of die-cut adhesive component. It provides capacity for components up to 100 x 100mm in size. The PL100i-ET200 is configured specifically for integration into automated assembly solutions. It includes all of the hardware necessary for operation including an electric precision-guided Tamp…
-
PL100EPr Feeder
Description The “All-Electric” PL100EPr Feeder provides a highly accurate and reliable feed and peel system of virtually any shape of die-cut adhesive component. No pneumatics simplifies setup and maintenance. It provides capacity for components up to 100 x 100mm in size. The PL100EPr is configured specifically for integration with external Robotic or Picker devices. It…
-
PL100EPr-C Compact Feeder
Description The “All-Electric” PL100EPr-C Feeder is our compact version of the PL100EPr unit. It provides a highly accurate and reliable feed and peel system of virtually any shape of die-cut adhesive component. No pneumatics simplifies setup and maintenance. It provides capacity for components up to 100 x 100mm in size. The PL100EPr-C is configured specifically…
